VMWare monitoring agent for Nagios and MRTG

[Steve Shipway]

So, I¡¯m working on an agent to link VMware to both Nagios and MRTG.



This is intended to allow us to get alarms from VMware into Nagios,
including alerts on things like disk latency and CPU ready time; also to get
graphs in MRTG for the main VC metrics without having to load up the whole
VC client.  The graphs also show percentages of configured maxima and split,
which is easier to understand than the VC Client graphs.



It is currently working in beta.  The features are ¨C

¡¤         Runs as a daemon, polling every 5min (configurable)

¡¤         Talks to the VirtualCentre to collect data on the entire
datacentre

¡¤         Outputs to MRTG (via rrdcached) and Nagios (via livestatus) (can
disable either).  Services in Nagios are configured as passive, with a
freshness check to alert if the agent dies; in MRTG, data is pushed directly
into the RRD, so MRTG never runs, only the RRD frontend (eg, Routers2).

¡¤         Support for duplicate (DR) livestatus server to receive copies of
status updates

¡¤         Configurable thresholds for all metrics

¡¤         Can create config files for both MRTG and Nagios dynamically, so
as your farm structure changes, so does the monitoring.  Config files are
optimised for Routers2/RRD/MRTG setup.

¡¤         Can validate guest identities via hostname, DNS, livestatus, etc

¡¤         Logging to file, syslog, Nagios

¡¤         Collects stats on disk use (traffic and latency per vdisk),
network use (traffic per interface), CPU (including split) and memory
(including split)

¡¤         Collects info on Datastore usage, cluster balance, Virtualcentre
alarms, guest up/down

¡¤         Config files generated by TT2 templates, so you can modify them
as required

¡¤         Tested with VC holding 4 datacentres, 17 clusters, 51 hosts, 1300
guests with MRTG and Nagios, and it takes 5min to complete poll



Is anyone interested in giving it a try, given that there is very sparse
documentation for it as yet?  If so, please contact me direct.



This is the fully-rewritten child of the old check_vmware.pl plugin for
Nagios/MRTG that I wrote, which was itself the child of check_esx3.



Steve

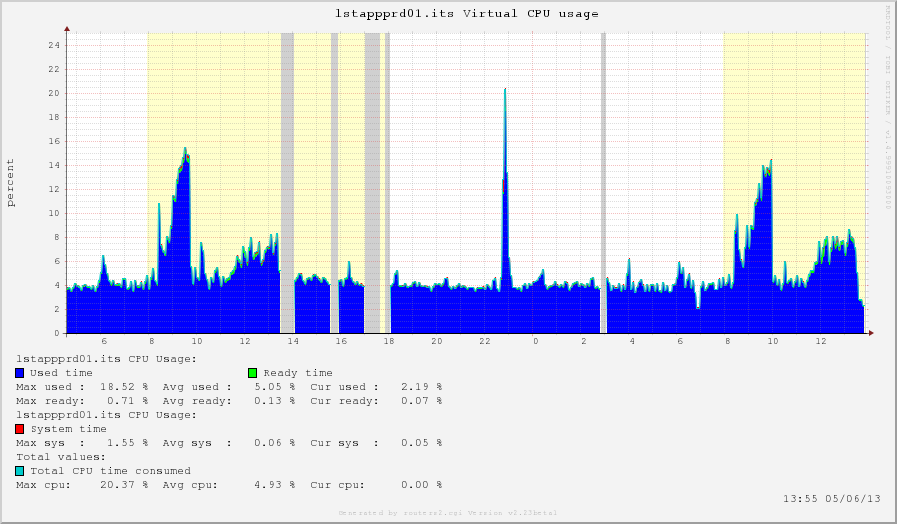

Routers2/MRTG/RRD graph for CPU

hosts-maillstappprd01.its.cfg-_lstappprd01.its.auckland.ac.nz-cpu-combined-d



  _____

Steve Shipway

ITS Unix Services Design Lead

University of Auckland, New Zealand

Floor 1, 58 Symonds Street, Auckland

Phone: +64 (0)9 3737599 ext 86487

DDI: +64 (0)9 923 6487

Mobile: +64 (0)21 753 189

Email:  <mailto:s.shipway at auckland.ac.nz> s.shipway at auckland.ac.nz
