Circular path...

[Rafael F Suguiura]

Mike,

Thanks the explanation. I got it...
But at least I want to remove those serials from map, because they appear
directly connected to the nagios process, what is not the true...

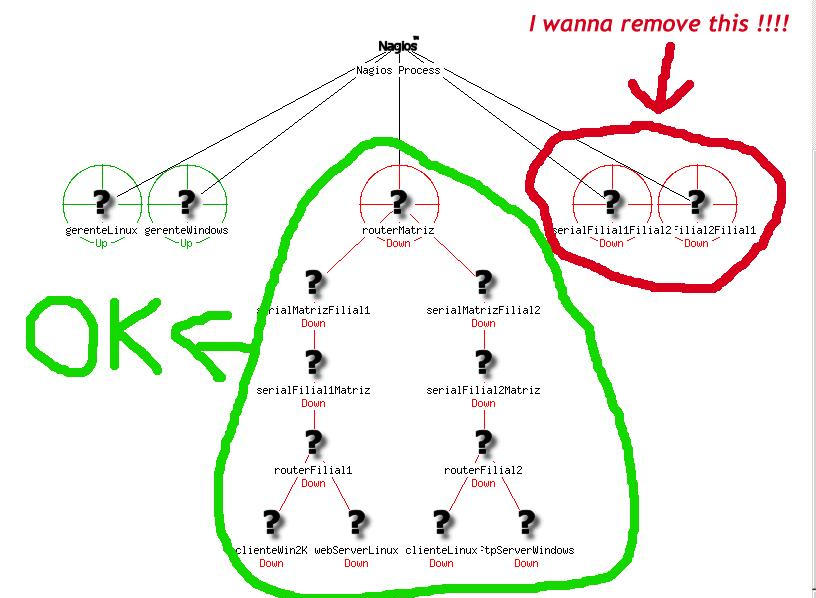

I´m attaching a screenshot of my map, with some annotations.
It is possible?

Thanks again,
Rafael.
----- Original Message -----
From: "Mike McClure" <mmcclure at pneservices.com>
To: "Rafael F Suguiura" <rafaelbsb at terra.com.br>
Cc: "Nagios users" <nagios-users at lists.sourceforge.net>
Sent: Saturday, November 23, 2002 2:32 PM
Subject: Re: [Nagios-users] Circular path...


> Hi Rafael,
>
> I would not worry about the router2-router3 relationship.  Only worry
about
> dependencies, from the point of view of the Nagios server.
>
> Think about it this way:
>
> If router2 dies, what happens?  What systems are you going to lose contact
with?
> Assuming you have everything configured correctly, only router2 and the
LAN behind
> it.  Same thing with router3, you only lose that router and the LAN.
>
> *UNDER NORMAL CIRCUMSTANCES* the only dependent parent for those routers
is router1.
>  The only time that router2 becomes a parent is if the router1-router3
link is down.
>
> I personally would not worry about that condition, because the whole point
of having
> the parents and dependencies is to keep from getting notified about
something that
> depends on something else that you've already been notified for.  It
doesn't have to
> be a perfect representation of your topology.
>
> - Mike
>
> > Hi fellows !
> >
> > I´m with a little problem.
> > My network topology is composed by three LANs with one router in each
one,
> > and each router with two serial ports (it´s becoming fun...)
> > All the routers have a PPP link with each other, what bring a full
meshed
> > configuration.
> > But when I tried to configure all the parents in hosts.cfg I got a
"ERROR:
> > There is a circular parent/child that exists for host"
> > But the Router2 is parent for Router3, and vice versa...
> > I´m trying to make the impossible happens or is there a way???
> >
> > There is my topology in a terrible ASCII art (art???)
> >
> >             Nagios Server
> >                     !
> >                 ----------
> >                         !
> >                     Router1
> >                         /\
> >                      /      \
> >                   /            \
> >         Router2-------Router3
> >                 !                    !
> >             -------            ------
> >                   !                    !
> >                 Clients        Clients
> >
> > Thanks,
> > Rafael
> > Brasilia, Brasil.
> >
> >
> >
> > -------------------------------------------------------
> > This sf.net email is sponsored by:ThinkGeek
> > Welcome to geek heaven.
> > http://thinkgeek.com/sf
> > _______________________________________________
> > Nagios-users mailing list
> > Nagios-users at lists.sourceforge.net
> > https://lists.sourceforge.net/lists/listinfo/nagios-users
> >
> >
>
>
> --
> Mike McClure, CCIE # 5125, CISSP # 30232
> PNE Services, Inc. -  http://www.pneservices.com
> mmcclure at pneservices.com
> mobile: 913-636-5590
>
>
> Esta mensagem foi verificada pelo E-mail Protegido Terra.
> Scan engine: VirusScan / Atualizado em 20/11/2002 / Versão: 1.3.13
> Proteja o seu e-mail Terra: http://www.emailprotegido.terra.com.br/
>
